ENGLISHLinear Voltage Regulators
Linear Voltage Regulators-Product Selection
| Output Current Vout (Max) (A)
0.5A 1.5A 1A |
Operating Voltage (Vcc) (v)
~1.25V-37V 1.25-18V 1.2V-37V 7~35V 7~40V |
Operating Temperature Range (℃)
-40~125°C |
Package
SOT223 SOT89 SOT252 TO-252 TO-220/TO-263 |
Alternative
L78XX KA78XX LM1117 AMS1117 LM317 LM337 LM78M CJ78M UA78M |
| Product image | Model number | Output Current Vout (Max) (A) | Operating Voltage (Vcc) (v) | Operating Temperature Range (℃) | Package | Alternative |
 |

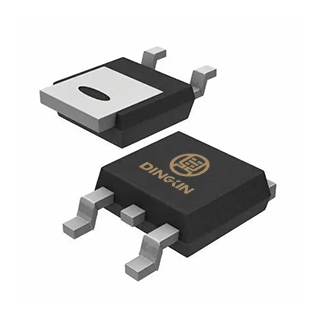

L7805 | 1.5A | 7~40V | -40~125°C | TO-252 TO-220/TO-263 | L78XX KA78XX |
 |
DX-AD580 | |||||
 |
DX-AD620B | |||||
 |

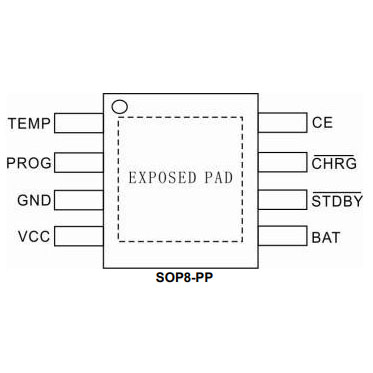

DX-TP4056V01 | |||||
 |
DX-AO4812 | |||||
 |
DX-XL1509-5.0 | |||||
 |

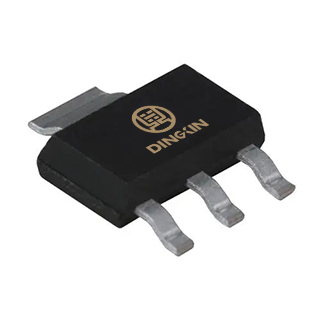

AMS1117 | 1A | 1.25-18V | -40~125°C | SOT223 SOT89 SOT252 | LM1117 AMS1117 |
 |
L78MXXH | 0.5A | 7~35V | -40~125°C | TO-252 TO-220/TO-263 | LM78M CJ78M UA78M |
 |
LM337 | 1.5A | ~1.25V-37V | -40~125°C | TO-252 TO-220/TO-263 | LM337 |
 |
LM317 | 1.5A | 1.2V-37V | -40~125°C | TO-252 TO-220/TO-263 | LM317 |
