Timers-Product Selection
| Operating Voltage (Vcc) (v)
4.5-15V 4.5-16V |
Quiescent Current Iq (Typ)
10mA 60uA 6mA |
Drive Current Iout (mA)
100 200 250 |
Operating Temperature Range (℃)
0~70℃ |
Package
DIP-16 SOP-16 DIP-8 SOP-8 SOP-8 |
Alternative
ICM7555 TLC555 ICL7555 NE555 LM555 NE556 LM556 |

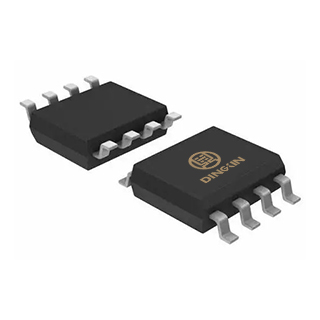

| Product image | Model number | Operating Voltage (Vcc) (v) | Quiescent Current Iq (Typ) | Drive Current Iout (mA) | Operating Temperature Range (℃) | Package | Alternative |
 |

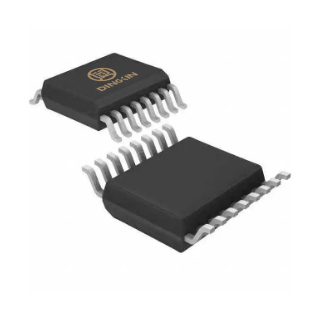

NE556 | 4.5-16V | 6mA | 200 | 0~70℃ | DIP-16 SOP-16 | NE556 LM556 |
 |

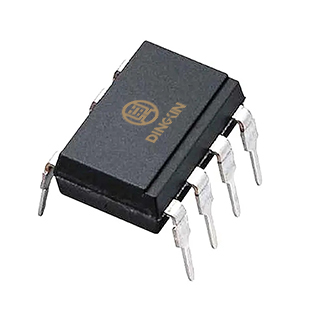

NE555 | 4.5-16V | 10mA | 250 | 0~70℃ | DIP-8 SOP-8 | NE555 LM555 |
 |
TLC555 | 4.5-15V | 60uA | 100 | 0~70℃ | SOP-8 | ICM7555 TLC555 ICL7555 |
