ENGLISHRS485/RS422 Transceivers
RS485/RS422 Transceivers-Product Selection
| Duplex Mode
Full-duplex Half-duplex |
Operating Voltage (Vcc) (v)
3.0V~5.5V 3.3~5.0V 3-5.5V 4.5~5.5V 4.75~5.25V 5V |
Transmission Rate (Max) (Mbps)
0.115M 0.25M 0.5M 10M 16M 2.5M |
Number of Nodes
128 256 |
Operating Temperature Range (℃)
0-70℃ |
Package
DIP-14 SOP-14 DIP-8 SOP-8 |
Alternative
MAX3082 MAX3085 SP3085 MAX3088 MAX3485 SP3485 MAX485 SP485 MAX3490 MAX3491 MAX481 SP481 MAX483 SP483 MAX487 SP487 MAX488 SP488 MAX489 SP489 MAX490 SP490 MAX491 SP491 SN65176 DS65176 SN65LBC184 SN75176 SN75LBC184 SP485 ST485 HG485 |

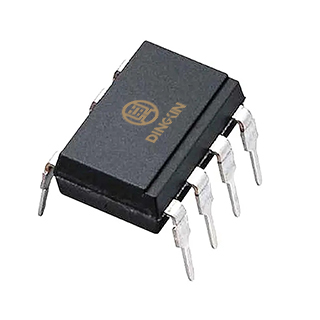

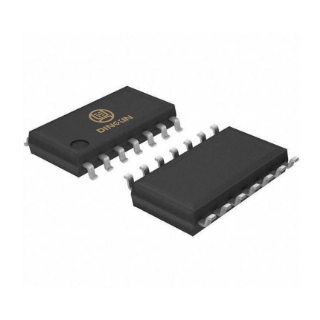

| Product image | Model number | Duplex Mode | Operating Voltage (Vcc) (v) | Transmission Rate (Max) (Mbps) | Number of Nodes | Operating Temperature Range (℃) | Package | Alternative |
 |
MAX481 | Full-duplex | 5V | 0.115M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX481 SP481 |
 |
MAX483 | Half-duplex | 5V | 0.115M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX483 SP483 |
 |
MAX485 | Half-duplex | 3-5.5V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | SP485 ST485 HG485 |
 |
MAX487 | Half-duplex | 5V | 0.25M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX487 SP487 |
 |
MAX488 | Full-duplex | 5V | 0.25M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX488 SP488 |
 |
MAX489 | Full-duplex | 5V | 0.25M | 128 | 0-70℃ | DIP-14 SOP-14 | MAX489 SP489 |
 |
MAX490 | Full-duplex | 5V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX490 SP490 |
 |
MAX491 | Full-duplex | 5V | 0.25M | 128 | 0-70℃ | DIP-14 SOP-14 | MAX491 SP491 |
 |
MAX3082E | Half-duplex | 4.5~5.5V | 0.115M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX3082 |
 |
MAX3085E | Half-duplex | 5V | 0.5M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX3085 SP3085 |
 |
MAX3088E | Half-duplex | 4.5~5.5V | 16M | 256 | 0-70℃ | DIP-8 SOP-8 | MAX3088 |
 |
MAX3485E | Half-duplex | 3.0V~5.5V | 10M | 256 | 0-70℃ | DIP-8 SOP-8 | MAX3485 SP3485 MAX485 SP485 |
 |
MAX3490E | Full-duplex | 3.3~5.0V | 10M | 128 | 0-70℃ | DIP-8 SOP-8 | MAX3490 |
 |
MAX3491E | Full-duplex | 3.3~5.0V | 10M | 128 | 0-70℃ | DIP-14 SOP-14 | MAX3491 |
 |
SN65176 | Half-duplex | 4.5~5.5V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | SN65176 DS65176 |
 |
SN75176 | Half-duplex | 4.5~5.5V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | SN75176 |
 |
SN65LBC184 | Half-duplex | 4.75~5.25V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | SN65LBC184 |
 |
N75LBC184 | Half-duplex | 4.75~5.25V | 2.5M | 128 | 0-70℃ | DIP-8 SOP-8 | SN75LBC184 |
