74 Series-Product Selection
| Operating Voltage (Vcc) (v)
1.65V~5.5V 2-6V 3~9V 3-9V |
Quiescent Current Iq (Max) (uA)
0.1uA 1uA 20uA 2uA 40uA 4uA 5uA 8uA |
Operating Temperature Range (℃)
-40~105°C -40~125°C -40~85°C |
Package
DIP-14 SOP-14 TSSOP-14 DIP-16 SOP-16 TSSOP-16 DIP-20 SOP-20 TSSOP-20 SOT-23-5 SC70-5 |
Alternative
74HC00 74HC02 74HC04 74HC07 74HC08 74HC10 74HC11 74HC123 74HC126 74HC132 74HC138 74HC139 74HC14 74HC151 74HC153 74HC160 74HC161 74HC164 74HC165 74HC192 74HC193 74HC20 74HC238 74HC240 74HC244 74HC245 74HC259 74HC273 74HC32 74HC373 74HC374 74HC4051 74HC4052 74HC4053 74HC533 74HC534 74HC540 74HC541 74HC573 74HC574 74HC595 74HC74 74HC86 74HCT14 74LVC00 74LVC1G04 74LVC1G08 74LVC1G14 |

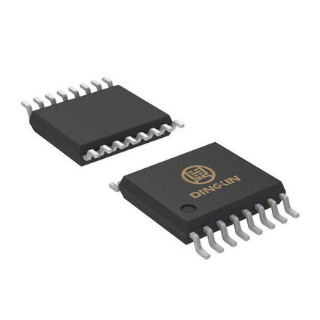

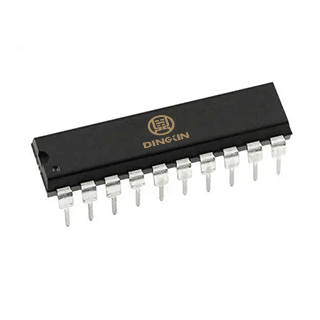

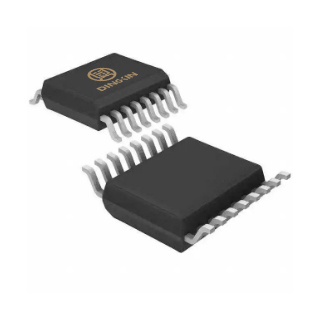

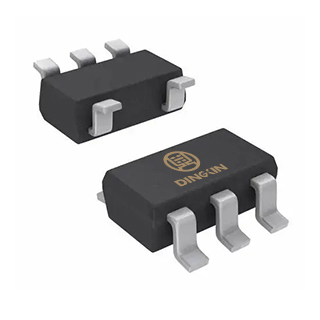

| Product image | Model number | Operating Voltage (Vcc) (v) | Quiescent Current Iq (Max) (uA) | Operating Temperature Range (℃) | Package | Alternative |
 |
74HC00 | 2-6V | 20uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC00 |
 |
74HC02 | 2-6V | 1uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC02 |
 |
74HC04 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC04 |
 |
74HC07 | 2-6V | 2uA | -40~85°C | DIP-14 SOP-14 TSSOP-14 | 74HC07 |
 |
74HC08 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC08 |
 |
74HC10 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC10 |
 |
74HC11 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC11 |
 |
74HC123 | 2-6V | 8uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC123 |
 |
74HC126 | 2-6V | 8uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC126 |
 |
74HC132 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC132 |
 |
74HC138 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC138 |
 |
74HC139 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC139 |
 |
74HC14 | 2-6V | 2uA | -40~125°C | DIP-14 SOP-14 TSSOP-14 | 74HC14 |
 |
74HC151 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC151 |
 |
74HC153 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC153 |
 |
74HC160 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC160 |
 |
74HC161 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC161 |
 |
74HC164 | 2-6V | 8uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC164 |
 |
74HC165 | 2-6V | 8uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC165 |
 |
74HC192 | 2-6V | 8uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC192 |
 |
74HC193 | 2-6V | 8uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC193 |
 |
74HC20 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC20 |
 |
74HC238 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC238 |
 |
74HC240 | 2-6V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC240 |
 |
74HC244 | 2-6V | 8uA | -40~85°C | DIP-20 SOP-20 TSSOP-20 | 74HC244 |
 |
74HC245 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC245 |
 |
74HC259 | 2-6V | 8uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC259 |
 |
74HC273 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC273 |
 |
74HC32 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC32 |
 |
74HC373 | 2-6V | 8uA | -40~85°C | DIP-20 SOP-20 TSSOP-20 | 74HC373 |
 |
74HC374 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC374 |
 |
74HC4051 | 3~9V | 8uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC4051 |
 |
74HC4052 | 3-9V | 2uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC4052 |
 |
74HC4053 | 3-9V | 2uA | -40~85°C | DIP-16 SOP-16 TSSOP-16 | 74HC4053 |
 |
74HC533 | 2-6V | 8uA | -40~85°C | DIP-20 SOP-20 TSSOP-20 | 74HC533 |
 |
74HC534 | 2-6V | 4uA | -40~85°C | DIP-20 SOP-20 TSSOP-20 | 74HC534 |
 |
74HC540 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC540 |
 |
74HC541 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC541 |
 |
74HC573 | 2-6V | 8uA | -40~85°C | DIP-20 SOP-20 TSSOP-20 | 74HC573 |
 |
74HC574 | 2-6V | 8uA | -40~105°C | DIP-20 SOP-20 TSSOP-20 | 74HC574 |
 |
74HC595 | 2-6V | 40uA | -40~105°C | DIP-16 SOP-16 TSSOP-16 | 74HC595 |
 |
74HC74 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC74 |
 |
74HC86 | 2-6V | 2uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74HC86 |
 |
74HCT14 | 2-6V | 2uA | -40~125°C | DIP-14 SOP-14 TSSOP-14 | 74HCT14 |
 |
74LVC00 | 2-6V | 0.1uA | -40~105°C | DIP-14 SOP-14 TSSOP-14 | 74LVC00 |
 |
74LVC1G04 | 1.65V~5.5V | 5uA | -40~105°C | SOT-23-5 SC70-5 | 74LVC1G04 |
 |
74LVC1G08 | 1.65V~5.5V | 5uA | -40~105°C | SOT-23-5 SC70-5 | 74LVC1G08 |
 |
74LVC1G14 | 1.65V~5.5V | 5uA | -40~105°C | SOT-23-5 SC70-5 | 74LVC1G14 |
