ENGLISHOperational Amplifiers
We offer a diverse selection of operational amplifiers to meet various system requirements, including TFT LCD panels, portable devices, and communication applications. With our complete product portfolio, you can enhance system functionality and performance while also reducing design size and power consumption.
Operational Amplifiers-Product Selection
| Operating Voltage (Vcc) (v)
±2.5~±15V ±3~±18V 2.3-5.5V 3-20V 3-24V 3-30V 3-32V 3-36V |
Gain Bandwidth Product GBW (Typ) (MHZ)
0.5 1 10 3 4 |
Offset Voltage VOS (Max)
10mV 13mV 150uV 15mV 1mV 5mV 6mV 7mV |
Slew Rate (V/us)
0.3 0.4 0.6 0.8 0.9 13 16 20 3.5 8 |
Quiescent Power Consumption Iq (Typ)
0.5mA 0.6mA 1.4mA 1.7mA 3.8mA 80uA 8mA |
Input Bias Current Iib (Typ)
1PA 200nA 30PA 45nA 50nA 5nA 65PA 80nA |
Operating Temperature (℃)
0~70℃ |
Alternative
KA358 NJM358 HA17358 LM258 LM321 LM324 LM324 LM2902 LM741 UA741 LMV324 LMV358 NE5532 NJM5532 njm2904 LM2904 OP07C OPA348 AD8541 TS321 LM321L MCP6001 MAX4281 TL061 TL062 TL064 TL071 TL072 TL074 TL081 TL082 TL084 |
Package
DIP-14 SOP-14 DIP-8 SOP-8 DIP-8 SOP-8 MSOP-8 TSSOP-8 SOP-14 TSSOP-14 SOT23 SC70-5 SOT-23-5 SC70-5L |

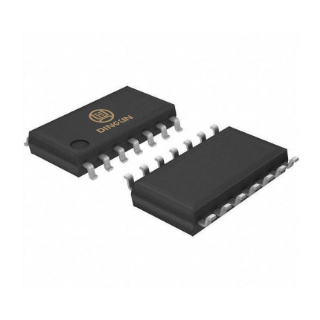

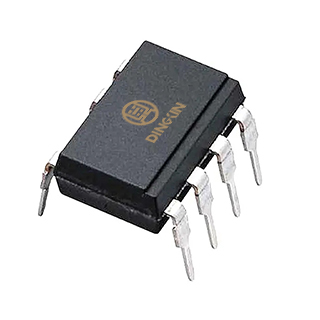

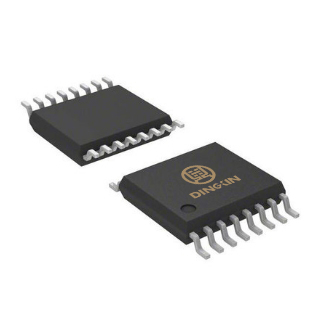

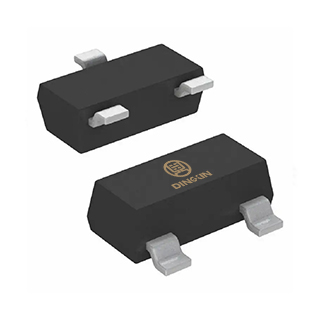

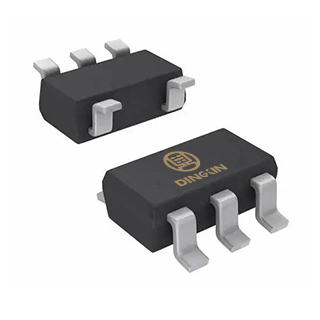

| Product image | Model number | Operating Voltage (Vcc) (v) | Gain Bandwidth Product GBW (Typ) (MHZ) | Offset Voltage VOS (Max) | Slew Rate (V/us) | Quiescent Power Consumption Iq (Typ) | Input Bias Current Iib (Typ) | Operating Temperature (℃) | Alternative | Package |
 |
TL071 | ±3~±18V | 3 | 10mV | 8 | 1.4mA | 65PA | 0~70℃ | TL071 | DIP-8 SOP-8 |
 |
LM258 | 3-36V | 1 | 5mV | 0.6 | 0.5mA | 50nA | 0~70℃ | LM258 | DIP-8 SOP-8 |
 |
LM2904 | 3-32V | 1 | 5mV | 0.6 | 0.5mA | 45nA | 0~70℃ | njm2904 LM2904 | DIP-8 SOP-8 |
 |
LM321 | 3-24V | 1 | 5mV | 0.4 | 0.5mA | 45nA | 0~70℃ | LM321 | SOT-23-5 SC70-5L |
 |
LM324 | 3-20V | 1 | 7mV | 0.6 | 0.6mA | 45nA | 0~70℃ | LM324 | DIP-14 SOP-14 |
 |
LM324B | 3-32V | 1 | 5mV | 0.6 | 0.6mA | 45nA | 0~70℃ | LM324 LM2902 | DIP-14 SOP-14 |
 |
LM358 | 3-24V | 1 | 7mV | 0.6 | 0.5mA | 45nA | 0~70℃ | KA358 NJM358 HA17358 | DIP-8 SOP-8 |
 |
LM358B | 3-32V | 1 | 5mV | 0.6 | 0.5mA | 45nA | 0~70℃ | KA358 NJM358 HA17358 | DIP-8 SOP-8 |
 |
LMV321 | 2.3-5.5V | 1 | 1mV | 0.8 | 80uA | 1PA | 0~70℃ | OPA348 AD8541 TS321 LM321L MCP6001 MAX4281 | SOT23 SC70-5 |
 |
LMV358 | 2.3-5.5V | 1 | 1mV | 0.8 | 80uA | 1PA | 0~70℃ | LMV358 | DIP-8 SOP-8 MSOP-8 TSSOP-8 |
 |
LMV324 | 2.3-5.5V | 1 | 1mV | 0.8 | 80uA | 1PA | 0~70℃ | LMV324 | SOP-14 TSSOP-14 |
 |
OP07C | ±2.5~±15V | 0.5 | 150uV | 0.3 | 3.8mA | 5nA | 0~70℃ | OP07C | DIP-8 SOP-8 |
 |
TL061 | ±3~±18V | 3 | 15mV | 8 | 1.4mA | 30PA | 0~70℃ | TL061 | DIP-8 SOP-8 |
 |
TL081 | ±3~±18V | 3 | 5mV | 20 | 1.4mA | 30PA | 0~70℃ | TL081 | DIP-8 SOP-8 |
 |
LM741 | ±3~±18V | 1 | 6mV | 3.5 | 1.7mA | 80nA | 0~70℃ | LM741 UA741 | DIP-8 SOP-8 |
 |
TL062 | ±3~±18V | 3 | 15mV | 13 | 1.4mA | 30PA | 0~70℃ | TL062 | DIP-8 SOP-8 |
 |
TL072 | ±3~±18V | 3 | 10mV | 13 | 1.4mA | 65PA | 0~70℃ | TL072 | DIP-8 SOP-8 |
 |
TL082 | 3-30V | 3 | 6mV | 13 | 1.4mA | 30PA | 0~70℃ | TL082 | DIP-8 SOP-8 |
 |
TL064 | ±3~±18V | 4 | 15mV | 8 | 1.4mA | 30PA | 0~70℃ | TL064 | DIP-14 SOP-14 |
 |
TL074 | ±3~±18V | 4 | 15mV | 8 | 1.4mA | 65PA | 0~70℃ | TL074 | DIP-14 SOP-14 |
 |
TL084 | ±3~±18V | 4 | 13mV | 16 | 1.4mA | 30PA | 0~70℃ | TL084 | DIP-14 SOP-14 |
 |
NE5532 | ±2.5~±15V | 10 | 5mV | 0.9 | 8mA | 200nA | 0~70℃ | NE5532 NJM5532 | DIP-8 SOP-8 |
